Well integrity
Recognise formation instability before consequences escalate.
INVIGOUR ENERGYServices · Consulting · Technology · LearningTalk to us ↗Integrated Sand Management
Know the sand.
Protect every barrel.
One connected service from prediction and monitoring to sampling, laboratory analysis, control design and digital decision support.
Non-intrusiveField surveillanceIntegratedEngineering to labActionableOperating decisions
LIVE SAND SURVEILLANCE
Sensor output Trend detected
01Predict→02Detect→03Measure→04Diagnose→05Control
Why integrated sand management
Sand is not one problem.
It is a connected asset risk.
Sand production can restrict throughput, erode equipment, impair well integrity and create unplanned intervention costs. Isolated measurements rarely explain the full problem.
Invigour connects reservoir behaviour, live field evidence, captured samples, laboratory data and completion knowledge so teams can act earlier and produce with greater confidence.
Equipment erosion
Identify exposure that threatens chokes, valves and pipework.
Production loss
Separate true sanding constraints from avoidable limits.
Unplanned cost
Move from reactive clean-outs to evidence-led management.
Our capabilities
One team. Four connected
service pillars.
Select a focused work scope or combine the pillars into a field-wide sand-management programme.
Consulting & engineering
Define the risk, operating envelope and right technical response.
- Sand prediction and sanding-risk studies
- Sand-free rate and operating-envelope definition
- Erosion and deposition assessment
- Sand-control completion and remedial design
- Integrated strategy and technical assurance
Field surveillance
Measure actual sand behaviour under live operating conditions.
- Portable acoustic sand-monitoring campaigns
- Multi-well sand-rate trending
- Online sand sampling and solids quantification
- Thermal imaging for sand-deposition screening
- Production-test correlation and diagnostics
Equipment & control
Deploy fit-for-purpose detection, sampling and mitigation hardware.
- Non-intrusive acoustic sand meters
- Closed-loop online sand-sampling packages
- Ceramic sand screens
- Sand-agglomeration chemical solutions
- Field acquisition and analysis equipment
Software & intelligence
Turn field and laboratory data into faster operating decisions.
- SandXAI digital sand-management workspace
- Well-by-well risk ranking
- Sand rate, cumulative sand and PPTB reporting
- Operating-envelope action tracking
- Technical and management dashboards
FIELD SERVICE Portable · Non-intrusive · Multi-well
Featured capability
Acoustic sand
monitoring
Actionable surveillance and diagnostics for upstream asset integrity and production optimisation.

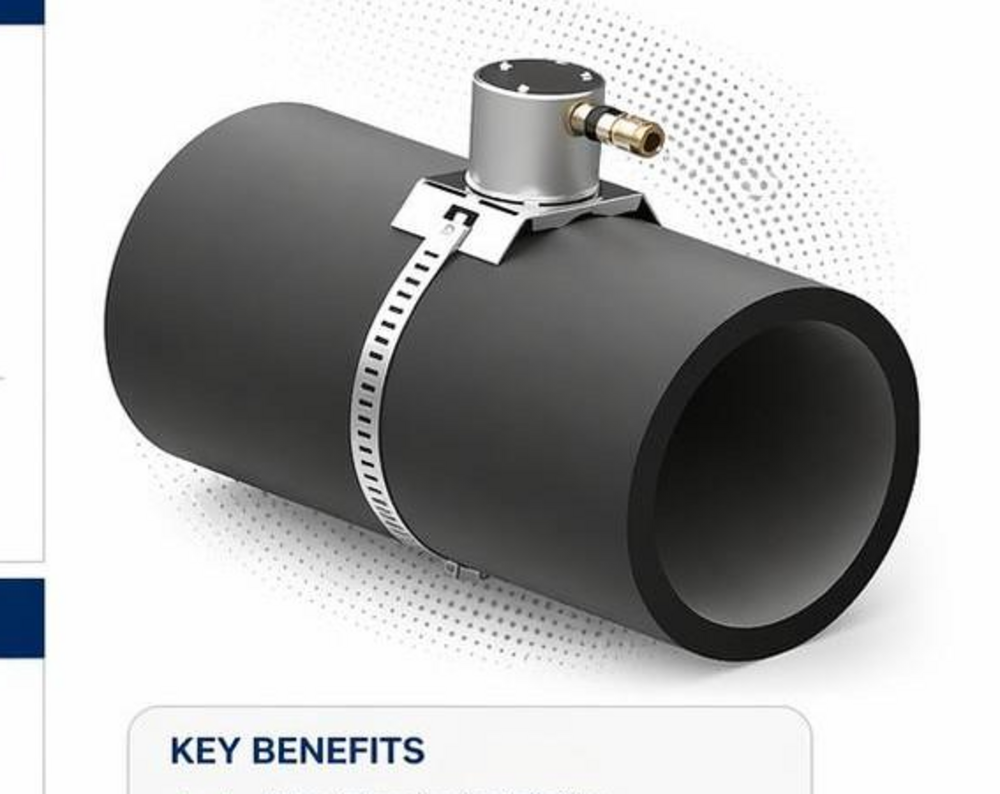

A sensor mounted externally on the pipe detects acoustic signatures created by particle impact. The signal is converted into sand-rate data and correlated with choke setting, pressure, temperature and production rates to explain how each well responds.
01
Non-intrusive
No pipe penetration or production interruption for sensor installation.
02
Real-time insight
See sand-rate response as operating conditions change.
03
Multi-well coverage
Portable equipment supports efficient campaigns across flowing wells.
04
Actionable output
Establish trends, rank risk and define a defensible sand-free rate.
Typical outputsg/s · cumulative sand · PPTB · sand-free operating windowPlan a campaign ↗
How it works
From pipe-wall signal
to production decision.
Detect
The externally mounted sensor captures particle-impact signatures.
Quantify
Field data is processed into a sand-rate trend and cumulative production.
Contextualise
Results are matched with well conditions and production-test data.
Optimise
The team defines safe operating guidance and follow-up actions.
Non-intrusiveReal-timeField-readyHarsh-environment capable
Final sensor selection and operating limits are confirmed for each deployment.
Physical evidence

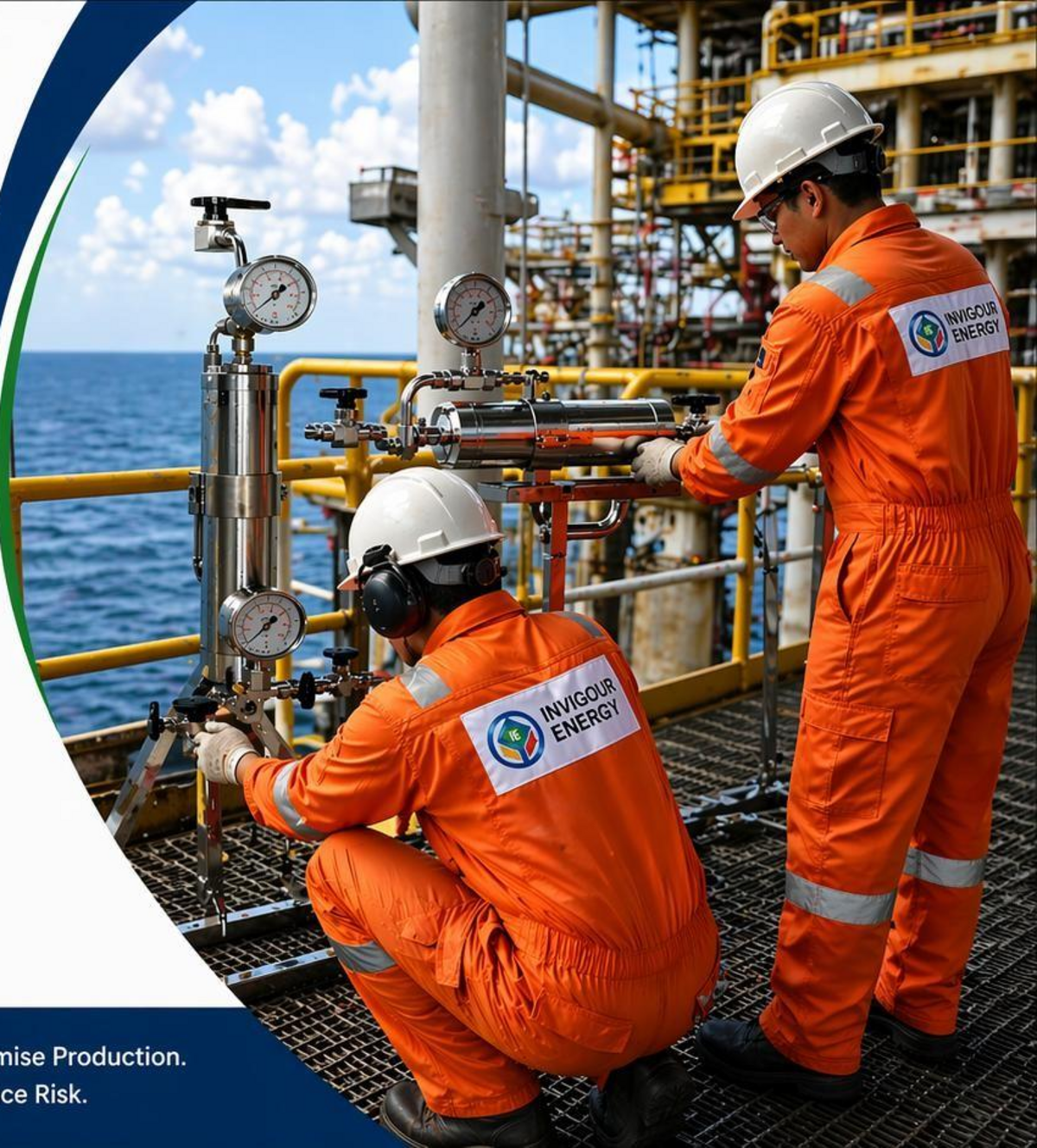

Online sand sampling
& laboratory services
Capture representative solids safely, then turn the sample into evidence your production and well teams can use.
Closed-loop samplingControlled collection with minimal disruption to live operations.
Field-to-lab continuityTraceable samples linked to the operating conditions at collection.
Integrated diagnosisCompare physical samples with acoustic, production and well data.
PressureUp to 5,000 psi*TemperatureUp to 120°C*Filters10–500 μm*
*Typical brochure configuration. Final package is verified for the site and operating envelope.Laboratory workflow
Samples become
decisions.
The analysis scope is selected around the operating question—from confirming sand presence to comparing wells, diagnosing changes and supporting control design.
Representative sampling
Collect solids online under controlled conditions, with field context and traceable sample identification.
Quantification
Determine recovered solids, normalise sand production and compare results by well and operating condition.
Particle analysis
Characterise particle-size distribution and document particle appearance to the agreed scope.
Integrated interpretation
Combine sample results with acoustic trends, well data and operating changes for practical recommendations.
Typical deliverables
Sample register & photographsParticle-size distributionSand loading / PPTBWell-to-well comparisonIntegrated technical report
Digital intelligence
SandXAI connects
the evidence.
Bring prediction, monitoring, sampling, laboratory results and operating guidance into one digital sand-management workspace—so teams can see risk, trends and recommended actions in context.
Centralised well surveillanceSand-risk and trend visualisationOperating-envelope supportTechnical and management reporting
Talk to Invigour
Build confidence into
every production decision.
Tell us the wells, symptoms and decision you need to make. We will shape a fit-for-purpose integrated sand-management scope.
Discuss your sand challenge ↗WhatsApp +60 13 329 3351
